Kit includes: Dual Large Evaporators, Dual Roof-Mount 2-Fan Condensers, Compressor Mounting Bracket, Dual TM16 Compressors, Booster Pump, Electric Water Valve, Digital Controller Kit, Hose, and all Required Fittings.
Dual Evaporators (Specs each unit):
- 65,000 BTU
- 18 amps @ 13.5 volts
- 1600 CFM
- Free Blowing Ceiling Mount Design
- High Performance DCM Motors
- Unique Drain Pan Design for Eliminating Condensation Issues
- Evaporator Mounted Pressure Switches for Maximum Compressor Protection
- Size: 8-1/2"H x 41-1/2"W x 15"D
- Weight: 58 lbs
- PART #: EV-5000
|
|

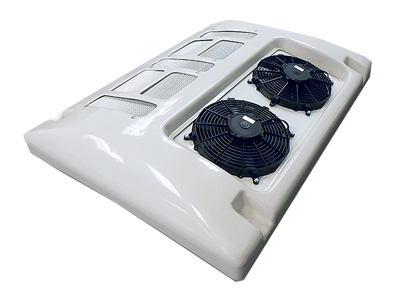

Dual Roof-Mount 2-Fan Condensers (Specs each unit):
- 75,000 BTU
- 23 amps @ 13.5 volts
- 2460 CFM
- 2-12" Sealed Spal Fans
- 4 Row Aluminum Fin Coil with Internally Enhanced Copper Tubing and 16 Gauge Galvanized Endplates
- Lightweight, Aluminum Frame
- Low Profile, Aerodynamic ABS High Strength Cover
- Size: 6"H x 36"W x 40"D
- Weight: 41 lbs
- PART #: RC-2000
|
|
Digital Controller Kit:
- Available in Automatic or Manual Control Mode
- Kit Includes: Digital Controller, 2 Relay Boards, Y Harness Adapter, Temperature Probe and Wiring Harness
- Size: 4-1/2"W x 2-1/2"H x 1"D
- Part #: PA-CON-200
|
|
